Kualitas Sumbat Pipa Karet Alam Stopper Air Stop Airbag pabrik

Sumbat Pipa Karet Alam Stopper Air Stop Airbag

Name: Sumbat Pipa Karet Alam Stopper Air Stop Airbag
Brand: Qingdao Henger Shipping Supply Co., Ltd
SKU: DN300-DN3000
Price: 162.00 USD
Availability: InStock

Atribut Utama

Nama merek: Henger

Nomor Model: DN300-DN3000

Tempat Asal: Cina

Sertifikasi: ISO. CCS.BV .SGS

Jumlah Pesanan Minimum: 1 buah

Harga: USD 125-200 Per Unit

Kemampuan Pasokan: 100 unit per minggu

Waktu Pengiriman: 5-8 hari kerja

Ketentuan Pembayaran: L/C, D/P, T/T, Western Union, MoneyGram, D/A

kemasan standar: Palet

Ringkasan Produk

Pipa Karet Alam Memasukkan Air Stop Airbag Airbag pemblokiran pipa adalah sejenis peralatan intersepsi dalam pipa dengan kekuatan anti-ekspansi yang baik, elastisitas dan fleksibilitas yang baik. Ini digunakan untuk intersepsi pipa dan saluran drainase, terutama digunakan dalam pasokan air dan ...

Atribut Kustom Produk

Menyoroti

0.10 Mpa Sumbat Pipa Karet

Sumbat Pipa Karet SGS

Pipa Penyegelan Air Stop Airbag

Aplikasi:

Penyegelan saluran pipa

Teknologi:

high pressure, anti-explosion type. tekanan tinggi, tipe anti-ledakan. Whole-wrappi

Tekanan Pekerjaan:

0.10Mpa-0.20MPa

Bahan:

Karet alam

Ukuran:

DN300-DN3000

Ketebalan:

Disesuaikan

Warna:

Hitam

Kemasan:

Palet

Deskripsi Produk

Pipa Karet Alam Memasukkan Air Stop Airbag

Airbag pemblokiran pipa adalah sejenis peralatan intersepsi dalam pipa dengan kekuatan anti-ekspansi yang baik, elastisitas dan fleksibilitas yang baik.

Ini digunakan untuk intersepsi pipa dan saluran drainase, terutama digunakan dalam pasokan air dan drainase, teknik sipil dan penyelamatan kebakaran.

Airbag pemblokiran pipa mematuhi standar peletakan dan inspeksi saluran pembuangan Jerman DIN EN1610, dan telah lulus uji kebocoran pipa baru dan lama.

Spesifikasi Airbag Penghenti Air Pipa Plugging

Jenis diameter akurat (mm) pip dia. tekanan pneumatik (Mpar) tekanan pneumatik (Mpar) tekanan pneumatik (Mpar)

DN300 298 300 0.1 0.16 0.2

DN400 400 400 0.1 0.16 0.2

DN500 499 500 0.1 0.16 0.2

DN600 600 600 0.1 0.16 0.2

DN800 800 800 0.1 0.16 0.2

DN1000 998 1000 0.1 0.16 0.2

DN1200 1200 1200 0.1 0.16 0.2

DN1350 1350 1350 0.1 0.16 0.2

DN1400 1400 1400 0.1 0.16 0.2

DN1500 1500 1500 0.1 0.16 0.2

DN1600 1600 1600 0.1 0.16 0.2

DN1650 1650 1650 0.1 0.16 0.2

DN1800 1800 1800 0.1 0.16 0.2

DN2000 2000 2000 0.1 0.16 0.2

DN2500 2500 2500 0.1 0.16 0.2

DN3000 3000 3000 0.1 0.16 0.2

Struktur Steker Uji Pipa Karet Tiup

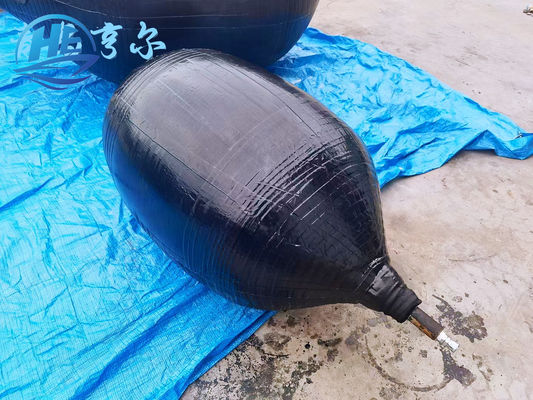

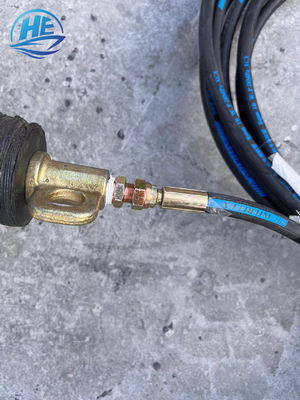

Airbag karet pemblokir saluran pipa biasanya memiliki badan berbentuk silinder dan dua kepala berbentuk kerucut, satu di setiap ujungnya.Di setiap ujung kepala, ada bushing logam sebagai mulut untuk inflasi udara dan steker dengan cincin.

Jika pelanggan memiliki kebutuhan khusus, kami juga dapat menyesuaikan sesuai dengan kebutuhan pelanggan

Aplikasi Airbag Penghenti Air Pipa Memasukkan

• Perbaikan mendesak, overhaul dan pemeliharaan saluran pipa drainase dan pembuangan kotoran

• Perawatan lumpur

• Eksperimen tertutup air dan udara tertutup

• Pengiriman air gorong-gorong

Prinsip kerja pemblokiran air kantong udara adalah dengan mengembangkannya dengan inflasi.Ketika tekanan gas di airbag mencapai persyaratan yang ditentukan, airbag mengisi seluruh bagian pipa, dan gaya gesekan yang dihasilkan oleh dinding airbag dan pipa digunakan untuk memblokir kebocoran air, sehingga mencapai bagian pipa target.Tidak ada tujuan rembesan.

Cara menggunakan airbag pemblokiran air pipa

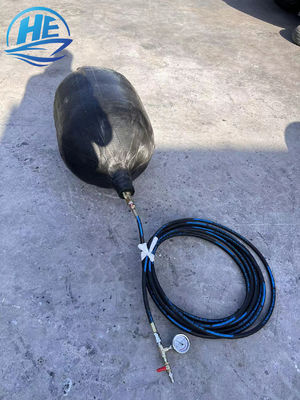

Letakkan kantong udara pemblokiran pipa di lubang pipa yang perlu diblokir.Panjang pipa adalah panjang airbag, dan kemudian udara terkompresi disuntikkan melalui katup masuk ke tekanan yang ditentukan, dan konstruksi dapat dilakukan.Setelah konstruksi selesai, buka katup masuk dan lepaskan.udara, keluarkan kandung kemih.
