Kualitas Dock Floating Yokohama Type Pneumatic Rubber Fender 50kpa 80kpa pabrik

Dock Floating Yokohama Type Pneumatic Rubber Fender 50kpa 80kpa

Atribut Utama

Nama merek: Henger

Nomor Model: 016

Tempat Asal: Cina

Sertifikasi: Iso 9001、BV、ccs

Jumlah Pesanan Minimum: 1 BUAH

Kemampuan Pasokan: 50 pcs minggu

Waktu Pengiriman: 5 hari

Ketentuan Pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram

kemasan standar: pucat

Ringkasan Produk

Dock Floating 50kpa 80kpa Yokohama Type Pneumatic Rubber Fender 1.Pengenalan fender karet pneumatik Fender karet tiup (dengan bola) adalah produk anti-tabrakan laut yang terbuat dari udara terkompresi.Udara terkompresi terutama digunakan sebagai media penyangga untuk menyerap energi benturan kapal, ...

Atribut Kustom Produk

Menyoroti

Dock Floating Yokohama Fender

,

Yokohama Pneumatic Rubber Fender 80kpa

,

Flange Pneumatic Rubber Fender

Bagian:

Flange, spatbor laut

Warna:

Hitam/Sebagai Persyaratan

Bahan:

Karet alam

Aplikasi:

STD, STS, Spatbor kapal

ukuran:

disesuaikan

Nama Produk:

fender karet pneumatik

Jenis:

50Kpa

Sedang mengemas:

Packing Telanjang/Sebagai Persyaratan

Sertifikasi:

CCS BV certification ISO17357 ISO9001

Deskripsi Produk

Dock Floating 50kpa 80kpa Yokohama Type Pneumatic Rubber Fender

1.Pengenalan fender karet pneumatik

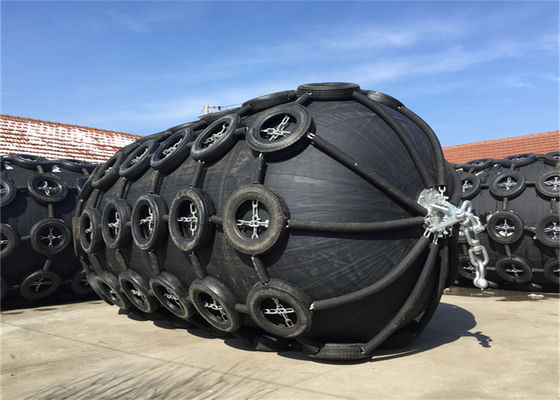

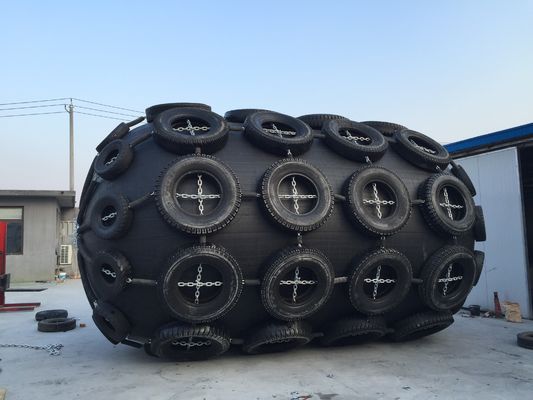

Fender karet tiup (dengan bola) adalah produk anti-tabrakan laut yang terbuat dari udara terkompresi.Udara terkompresi terutama digunakan sebagai media penyangga untuk menyerap energi benturan kapal, membuat kapal lebih fleksibel dan lunak saat berlabuh, sehingga mencapai efek tabrakan dan penghindaran tabrakan.Bola tipe Yokohama adalah sejenis bola tipe selubung.Biasanya ban pesawat atau ban engineering digunakan untuk membungkus bola.Kedua ujungnya dilengkapi dengan tali bahu, yang banyak digunakan untuk operasi transfer antar kapal dan operasi sandar kapal.Tunggu.Ukurannya adalah: D0.5m x L1.0m ~ D3.3m x L6.5m.Fender tiup (dengan bola) diproduksi sesuai dengan standar kualitas internasional ISO17357-2002 dan GB/T 21482-2002, dan produk mereka diekspor ke seluruh dunia.

Dock Floating Yokohama Type Pneumatic Rubber Fender 50kpa 80kpa 0

Dock Floating Yokohama Type Pneumatic Rubber Fender 50kpa 80kpa 1

2..Parameter fender karet pneumatik

Kapal Tonase (T)	Ukuran RekomendasiD×L(m)	Jenis Kapal
50	0,5 * 1,0	Kapal penangkap ikan
100	0,71,5~1,01,5	Kapal penangkap ikan
200	1.01.5~1.22.0	Kapal penangkap ikan, kapal penarik
300-500	1.22.0~1.52.5	Kapal penangkap ikan, kapal penarik
1000	1.52.5~1.53.0	Kapal penarik, kapal kargo
3000	2.03.0~2.03.5	kapal kargo, pukat laut
10000	2.03.5~2.54.0	kapal kargo

3.Parameter fender karet pneumatik

Persyaratan ukuran dan kinerja fender pneumatik 80
Ukuran nominal diameter x panjang mm	Tekanan internal awal kPa	Penyerapan energi terjamin (GEA)	Gaya reaksi pada defleksi GEA (R)	Tekanan lambung (Tekanan internal) pada defleksi GEA (P)
Ukuran nominal diameter x panjang mm	Tekanan internal awal kPa	Nilai minimum pada defleksi 60±5% kJ	Toleransi±10% kN	Nilai referensi kPa
500x1000	80	8	85	174
600x1000	80	11	98	166
700x1500	80	24	180	177
1000x1500	80	45	239	160
1000x2000	80	63	338	174
1200x2000	80	88	390	166
1350x2500	80	142	561	170
1500x3000	80	214	761	174
1700x3000	80	267	840	168
2000x3500	80	430	1150	168
2500x4000	80	925	1815	180
2500x5500	80	1317	2653	195
3300x4500	80	1640	2476	171
3300x6500	80	2532	3961	191
3300x10600	80	4281	6907	208
4500 x 9000	80	6633	7551	192
4500x12000	80	9037	10490	202

4.Fitur Fender Karet Pneumatik

* Keuntungan:

● Keamanan dan Keandalan

● Tidak Ada Kemunduran atau Variasi dalam Performa● Keuntungan di Miring Berthing

● Sistem Paling Kompetitif dengan Biaya ● Kekuatan Reaksi Lunak untuk Struktur Kapal dan Dermaga

● Pasukan Tambatan Rendah di bawah Kondisi Cuaca Kasar

Dock Floating Yokohama Type Pneumatic Rubber Fender 50kpa 80kpa 2

Dock Floating Yokohama Type Pneumatic Rubber Fender 50kpa 80kpa 3
